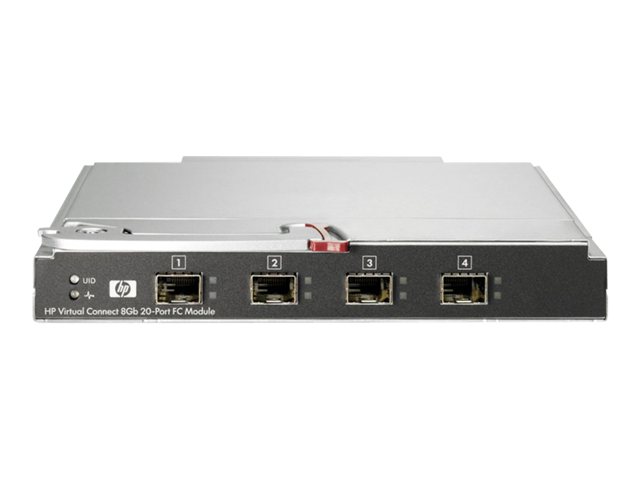

HPE Virtual Connect 8Gb 20-Port Fibre Channel Module - Front

HPE Virtual Connect 8Gb 20-Port Fibre Channel Module

Switch - 20 x 8Gb Fibre Channel - plug-in module - for BLc3000 Enclosure; BLc3000 Single-Phase Enclosure; BLc7000 Enclosure; ProLiant c3000
Out of stock
Additional stock expected 24/04/26
Additional stock expected 24/04/26
Manufacturer Hewlett Packard Enterprise
Part number 572018-B21
  • €9,686.34
Add to basket
  • Information
    • Allows up to 128 virtual machines running on the same physical server to access separate storage SAN resources
    • (4) 2, 4, 8Gb auto-negotiating fiber channel uplinks connected to external SAN switches
    • (16) 1, 2, 4 or 8Gb auto-negotiating fiber channel downlink ports provide maximum HBA performance
    • HBA aggregation on uplinks ports using ANSI T11 standards-based N Port ID Virtualization (NPIV) technology
    • Extremely low latency throughput provides switch-like performance
    • Storage management of virtual machines is no longer limited by the single physical HBA on a server blade
    • Managed with the virtual connect Ethernet module
    • Does not add to SAN switch domains or require traditional SAN management
    • Appears as a pass-thru device to the SAN manager
    • Provisioned storage resource is associated directly to a specific virtual machine - even if the virtual server is re-allocated within the BladeSystem
    • Ability to pre-configure server I/O connections
    • Ability to move, add, or change servers on the fly
    • Once defined, SAN administrators don't have to be involved in server changes
    The HPE Virtual Connect 8Gb 20-port FC module offers enhanced virtual connect capabilities, allowing up to 128 virtual machines running on the same physical server to access separate storage resources. Provisioned storage resource is associated directly to a specific virtual machine - even if the virtual server is re-allocated within the BladeSystem; Storage management of virtual machines is no longer limited by the single physical HBA on a server blade: SAN administrators can now manage virtual HBAs with the same methods and viewpoint of physical HBAs. The HPE Virtual Connect 8Gb 20-port Fiber Channel Module for the c-Class BladeSystem is the simplest, most flexible connection to your SAN fabrics. The HPE Virtual Connect 8Gb 20-port Fiber Channel Module simplifies server connections by cleanly separating the server enclosure from SAN, simplifies SAN fabrics by reducing cables without adding switches to the domain, and allows you to change servers in just minutes, not days.
